Section titled “Tensioning”To accommodate chain stretch over the course of a season and reduce backlash, an active tensioning system is required.
Inline Tensioners

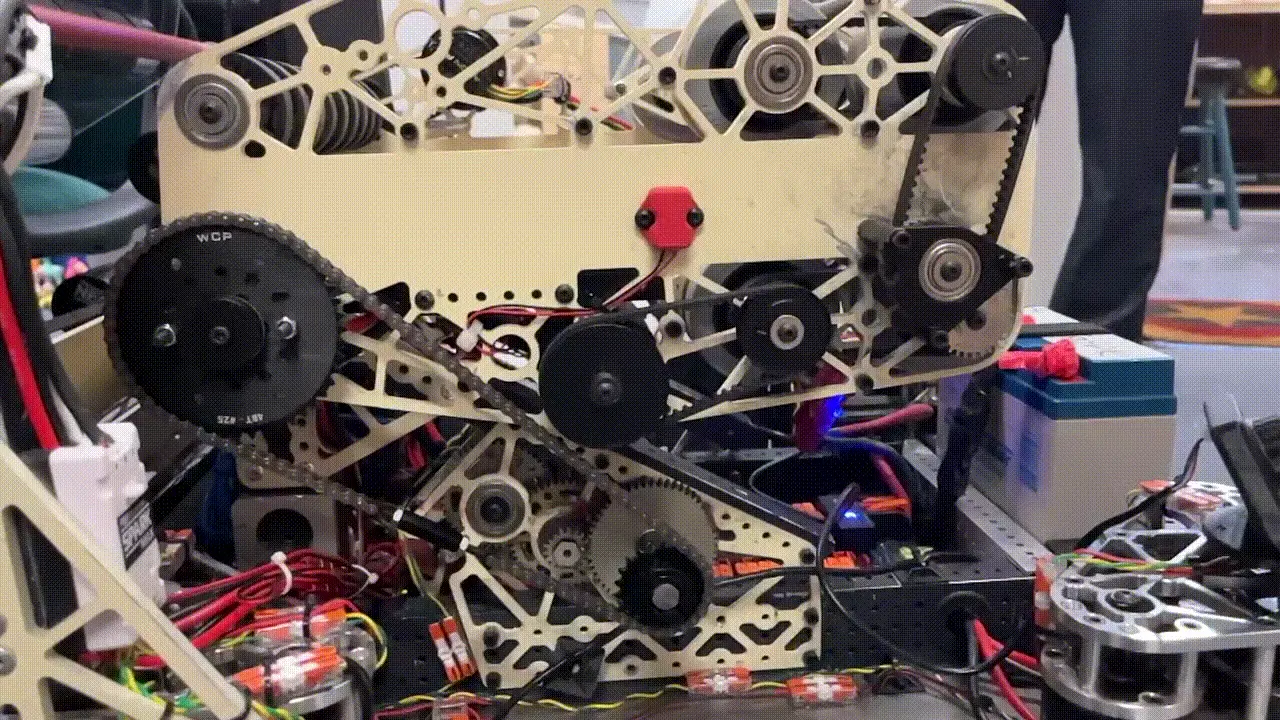

Section titled “Inline Tensioners”The simplest and easiest way to tension a chain is to use an inline tensioner. These come in two flavors, Spartan Tensioners and Inline Tensioners (see image below). These pull on the ends of the chain loop increasing or decreasing the loop length in very small increments. However, these aren’t designed to contact sprocket teeth, so are only useful if there is enough chain length available
Floaters
Section titled “Floaters”Floating chain tensioners are nice to work with because they do not require any additional structure and mount directly to the chain. These come in two types. One type squeezes the outsides of the chain pulling it inward in order to tension it, while the other is a sprocket that sits on the inside of the chain pushing the sides outward in order to tension it.
Floating sprockets come in discrete sizes, so there is less fine adjustability in the tension of the chain. These are generally used when space is a constraint, since they do not need lubrication or tools to adjust, and are very compact to install. They may also vibrate at high speeds and can come out if there is a bit of slack on the chain.
Floating chain tensioners squeeze the chain from both sides. This can add friction which reduces the efficiency of the system at the tradeoff of less complexity relative to an adjustible gearbox or idler gear. Additionally, the width of the tensioner has to be smaller than the diameter of the smaller sprocket or else it will slide towards the smaller sprocket and get stuck. COTS vendors sell premade inline tensioners, or teams can make their own. These tensioners are only held onto the chain from the tension of the chain applying pressure on the tensioner, so this has a centering effect on the tensioner because that is where forces are roughly equal. In effect, these tensioners aren’t rigidly attached. Hard impacts and gravity can cause disturbances in these tensioners, but teams have used them reliably in the past.
Idlers
Section titled “Idlers”Idlers are dead sprockets that can spin freely, positioned in such a way that they tug on the chain providing tension. They can be spring loaded to automatically tension them or screw driven. They can move linearly or rotationally. Teams can also purchase cots chain tensioners from COTS vendors, or make their own.
Moving Sprockets

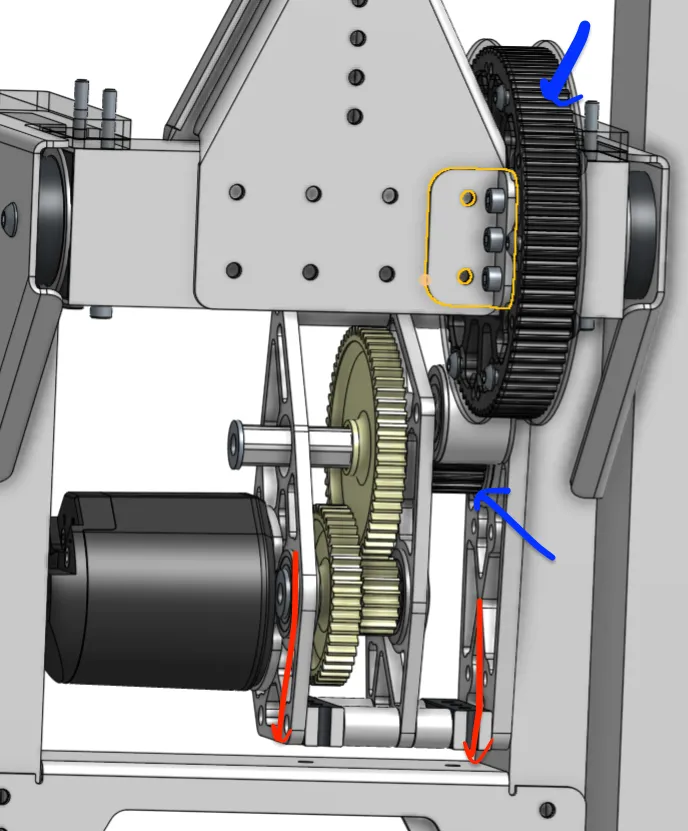

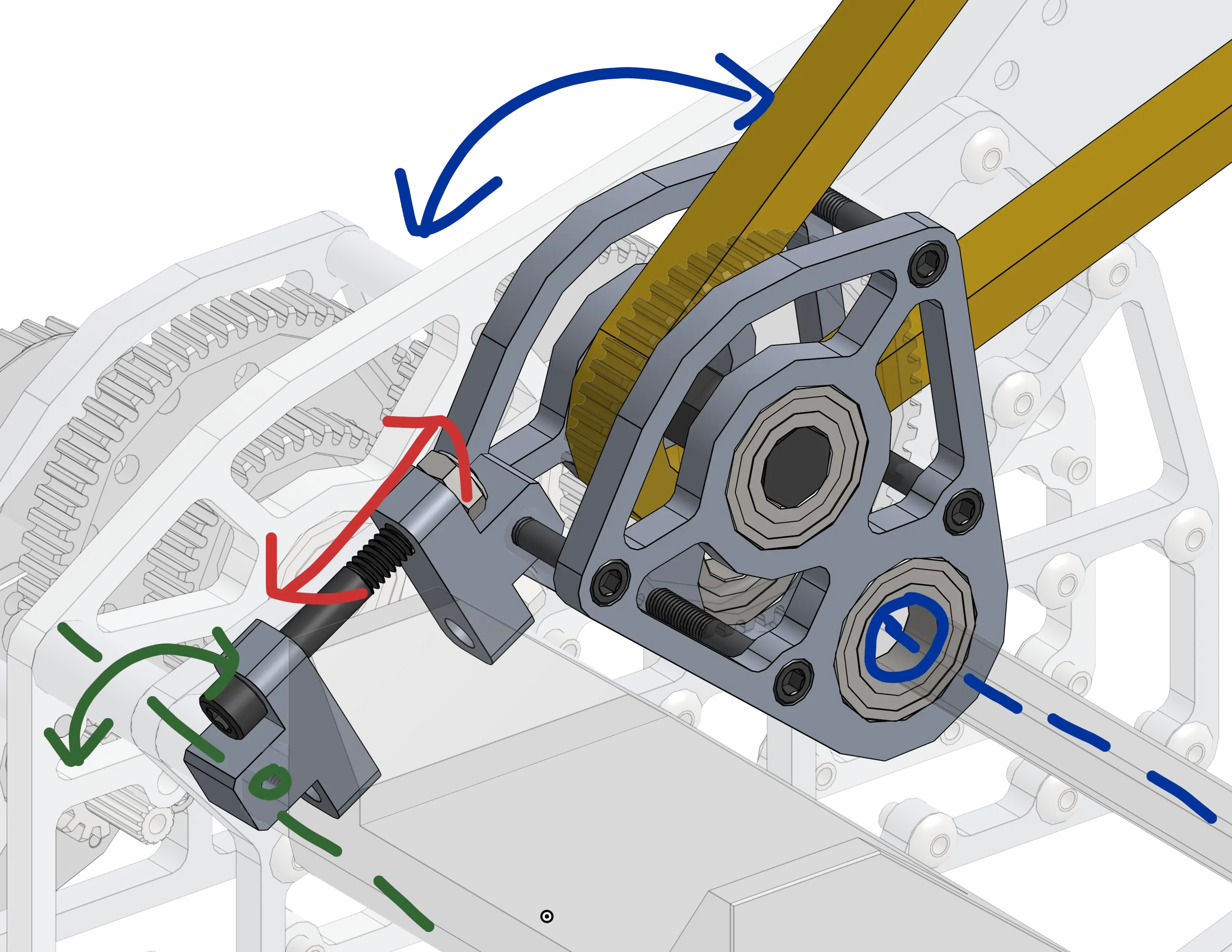

Section titled “Moving Sprockets”This is probably the most common form of chain tensioning in FRC. Mounting points for the sprockets can be moved rotationally or linearly through screws and springs to pull them away from each other in order to tension the chain.
Reference Design
Section titled “Reference Design”For this design, enough chain length was provided for a simple inline spartan tensioner to work well.
